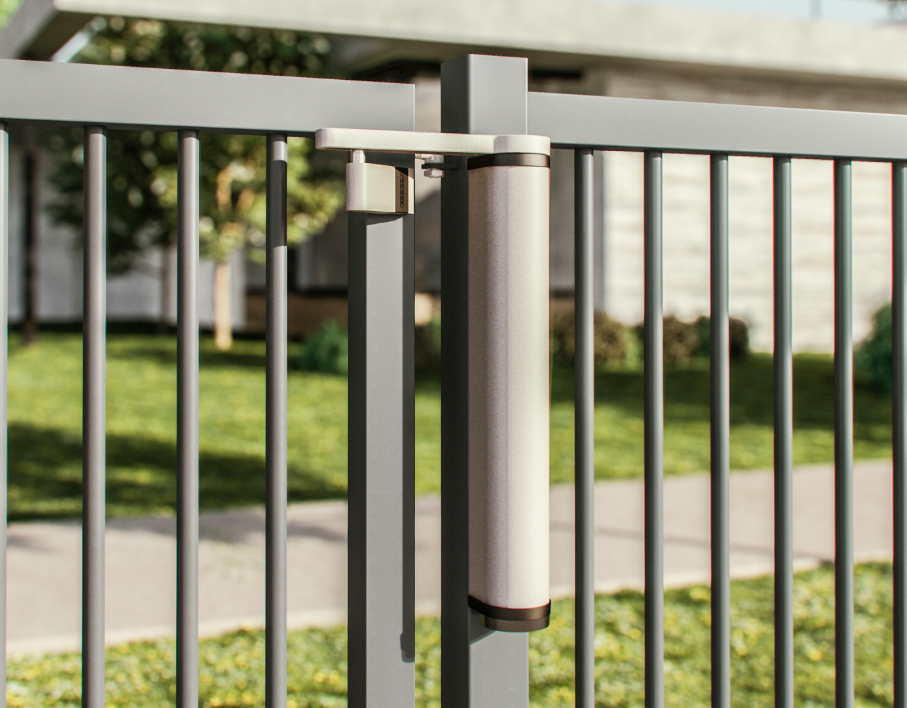

The Venus is a plug-and-play motorised gate closer for pedestrian swing gates.
The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types; sliding arm, articulated arm, and compact arm.
The innovative motor's performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
Motorised gate closer with integrated electronics
150 Nm torque
Fits on 80 mm profiles
For pedestrian gates up to 1400 mm wide and 100 kg
Steel gear box
Anodized aluminium cover
3 different arm options for installation
Easy mounting with Quick-Fix
Compact and vandal-proof design
Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz)
Motor voltage: 24V DC
Integrated warning light
Automated obstacle detection with reverse function
Brushless motor: long lifespan and intensive usage
Reversible motor with backdrivability for easy manual use - to be combined with a lock
