Handle Latch Deadlock | Gatemaster Superlock

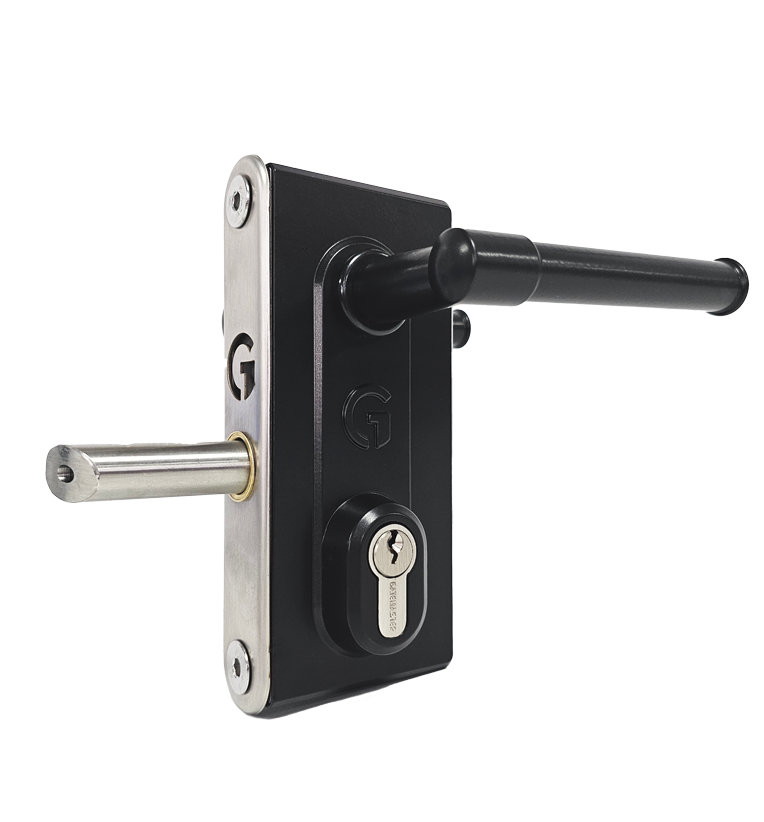

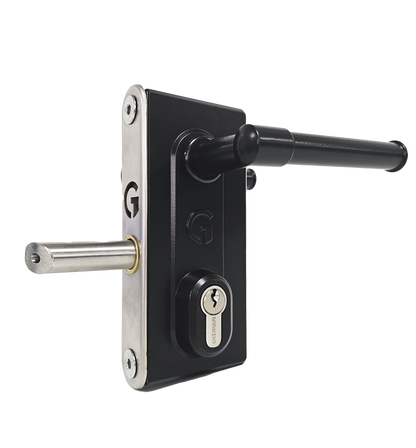

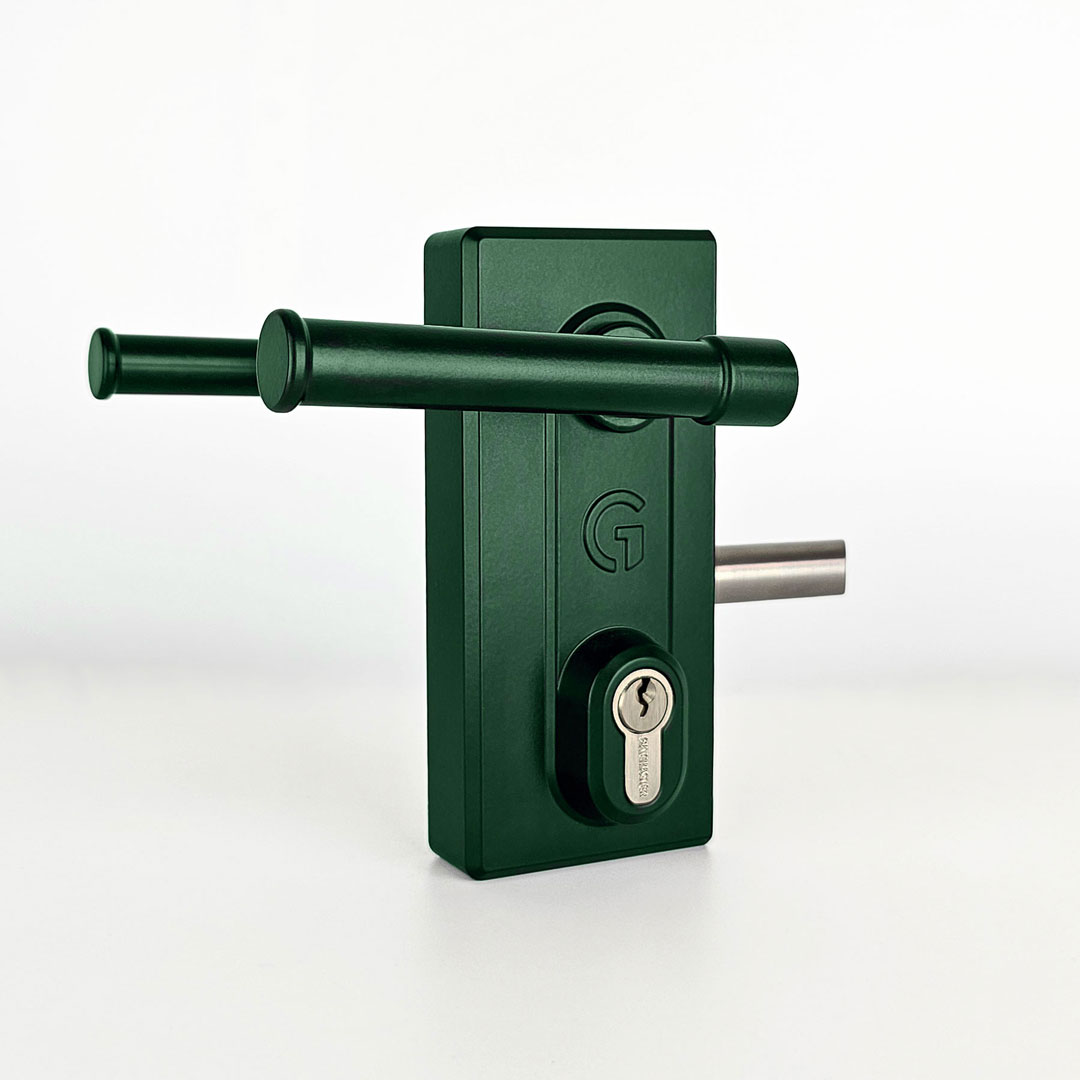

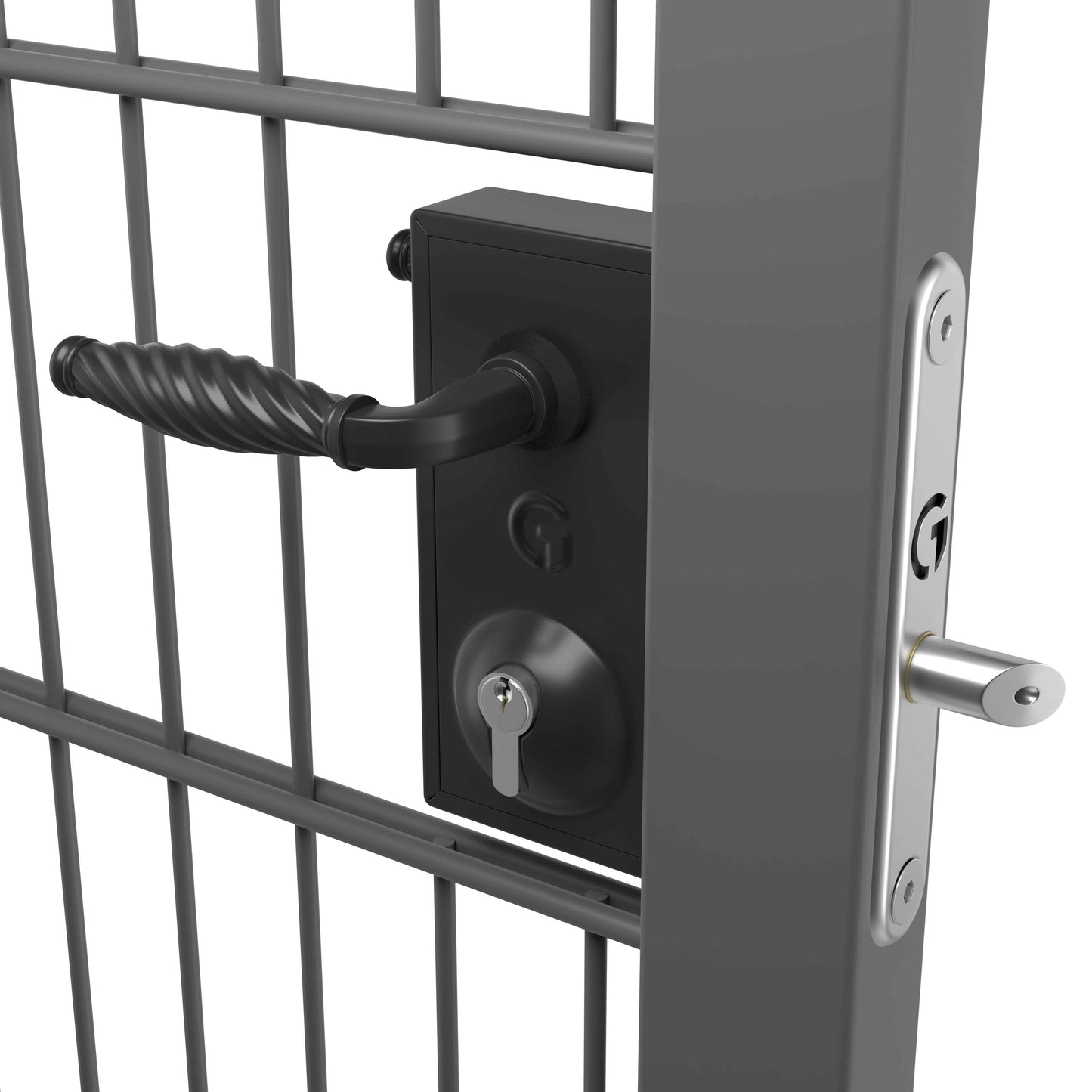

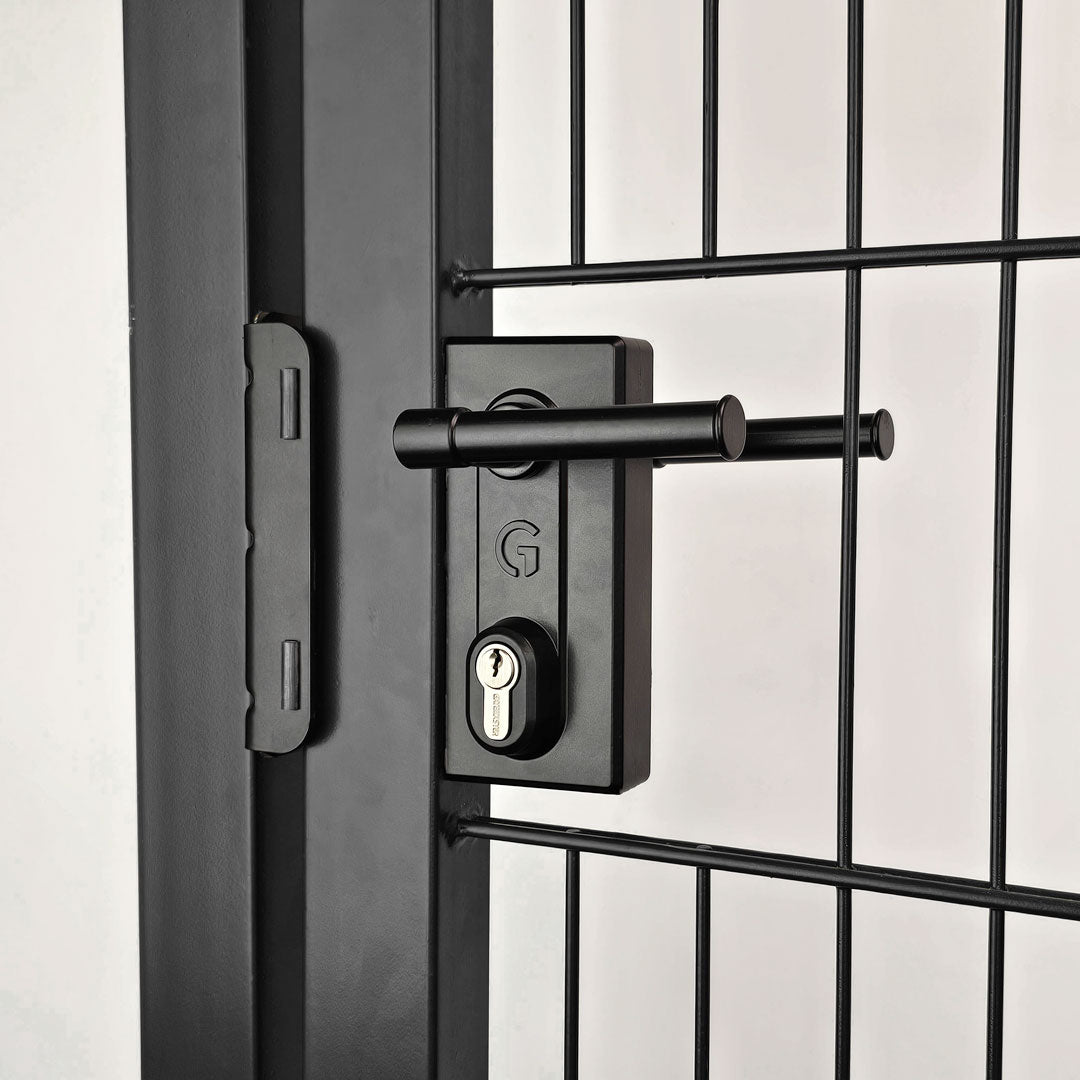

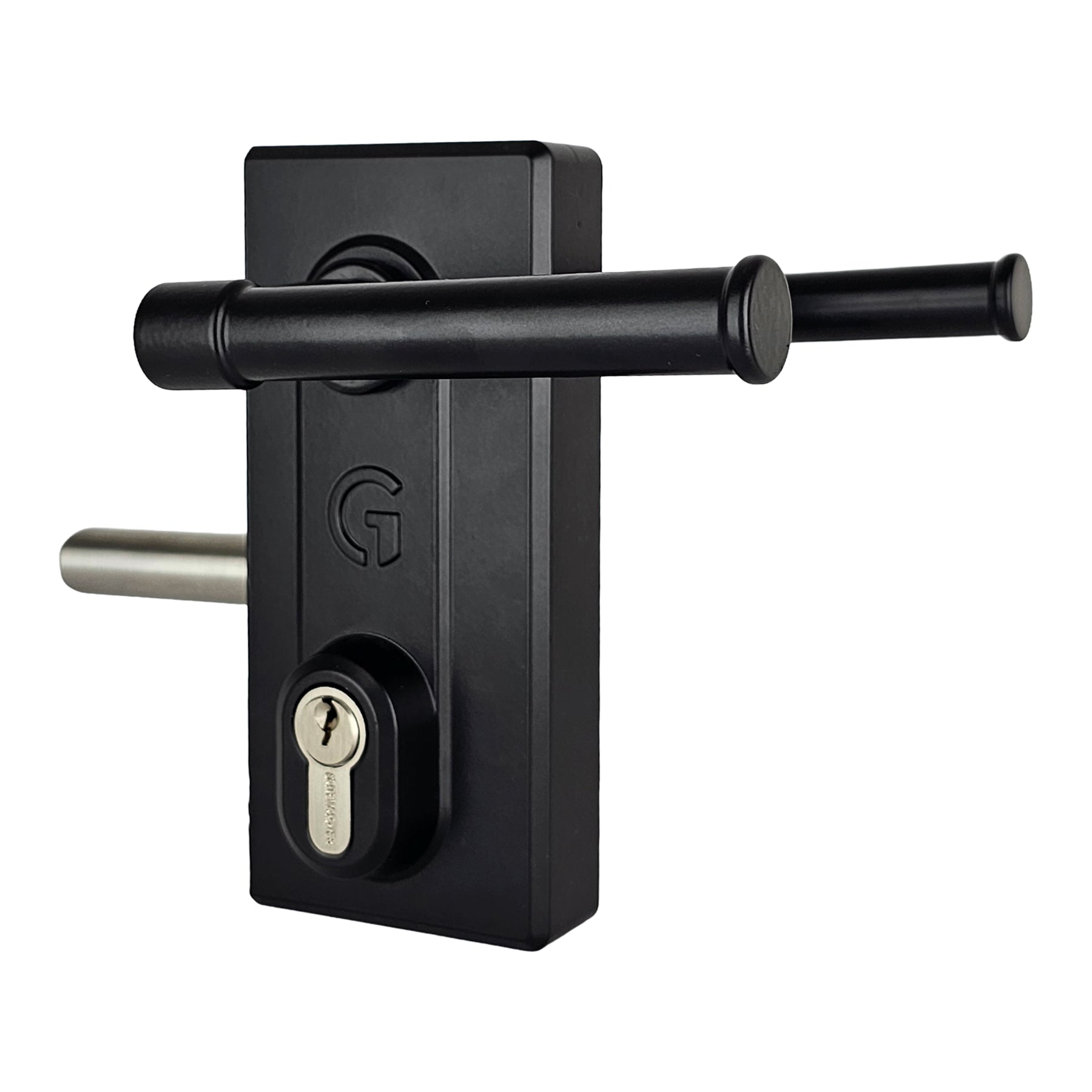

The Gatemaster Handle Latch Deadlock is a simple solution for adding a handle and key deadlock to metal square box section framed gates.

With only 3nr holes the lock can be bolted into the gate frame to provide convenient opening and deadlocking security when required.

The locks are suitable for both left and right hand gates.

KEY FEATURES

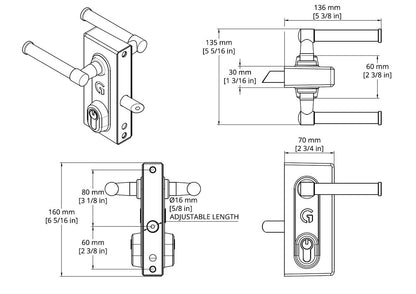

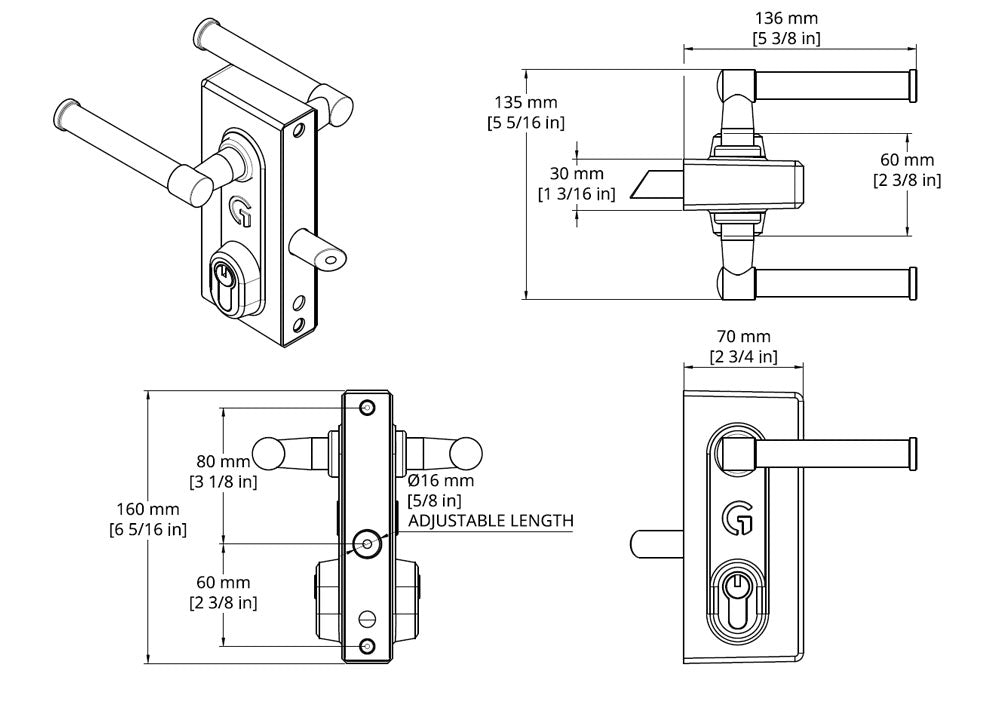

• Easy to fit – Slim 70mm case designed to fit a wide range of gate applications
• Secure – Stainless steel latchbolt which latches 15mm into the gate post and then moves another 15mm when deadlocked (30mm total deadlocked length)
• Adaptable – Latchbolt can be adjusted for different box section size and rotated to suit left or right hand gates
• Reliable – Supplied with a guide plate with brass bearing to ensure the lock lasts!
• Available in two sizes – BLD1030 for 10 to 30mm flat bar or box section gate frames and BLD4060 for 40 to 60mm gate frames

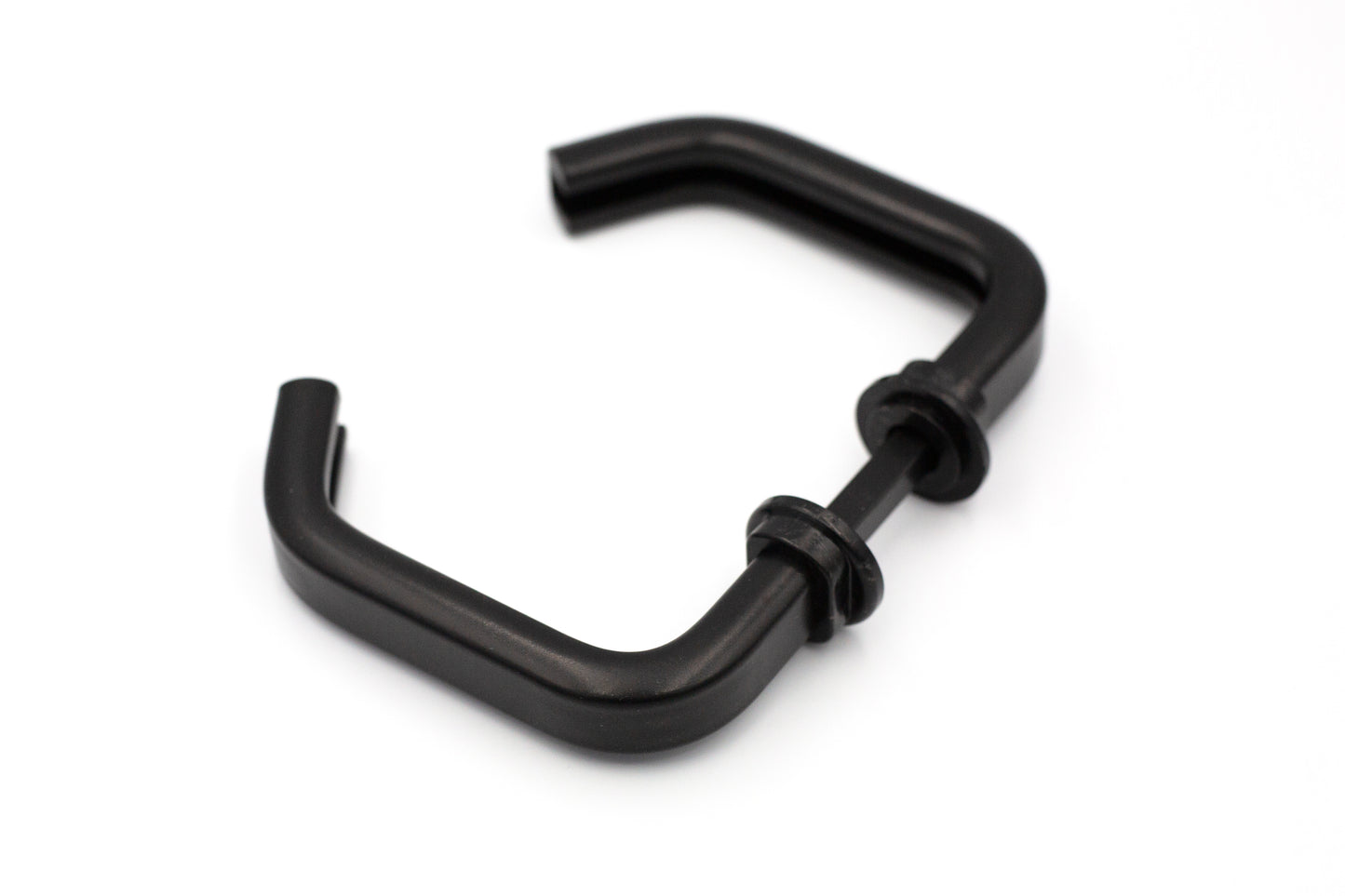

• Supplied with handles – Two styles available a plain lever style (S) or a more traditional looking handle (T)
• Use in conjunction with the Superlock keep to increase security and product life

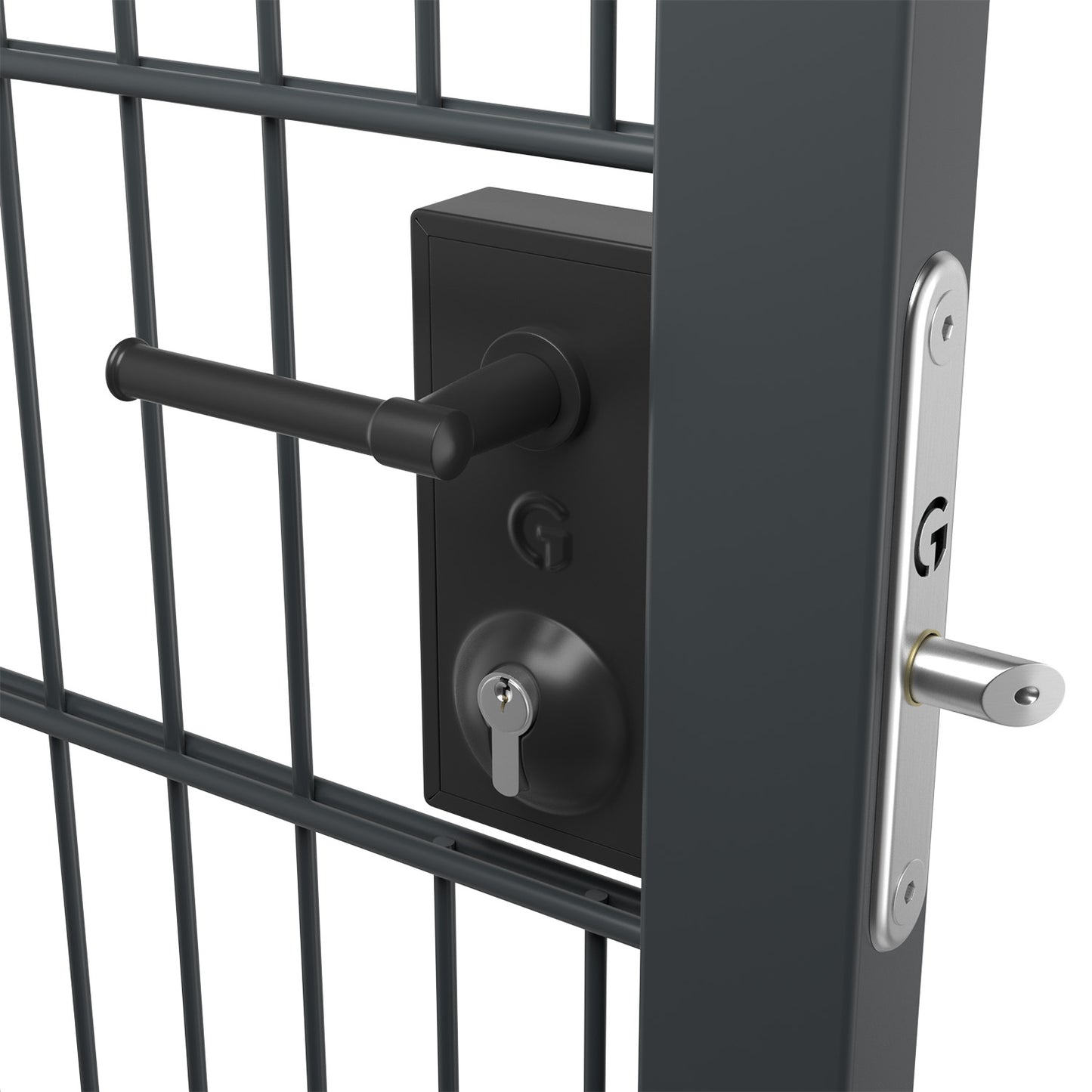

• Gate post strike plate supplied for smooth latching action

PRODUCT OPTIONS

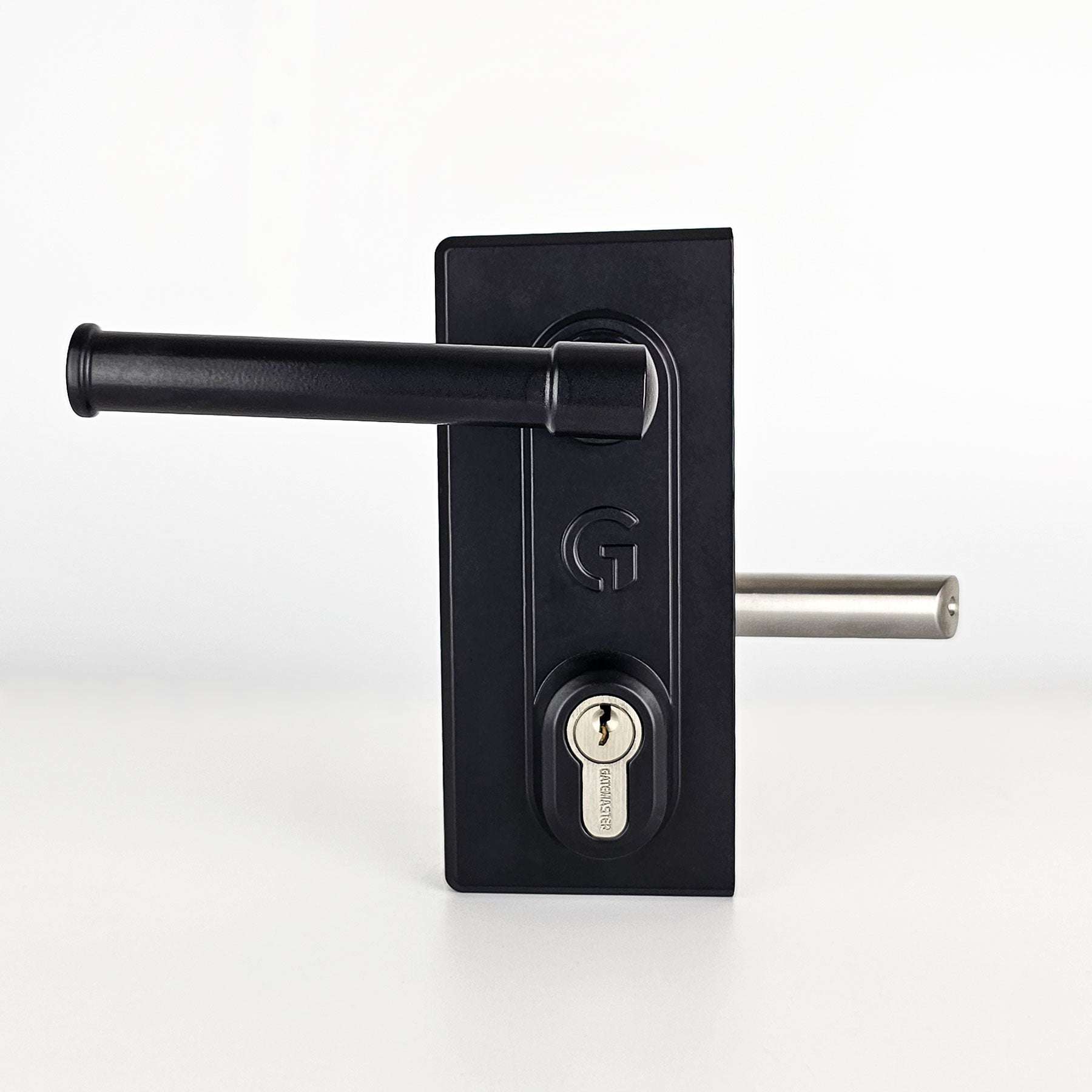

• BLD1030P – For 10-30mm gate frames with plain lever handles

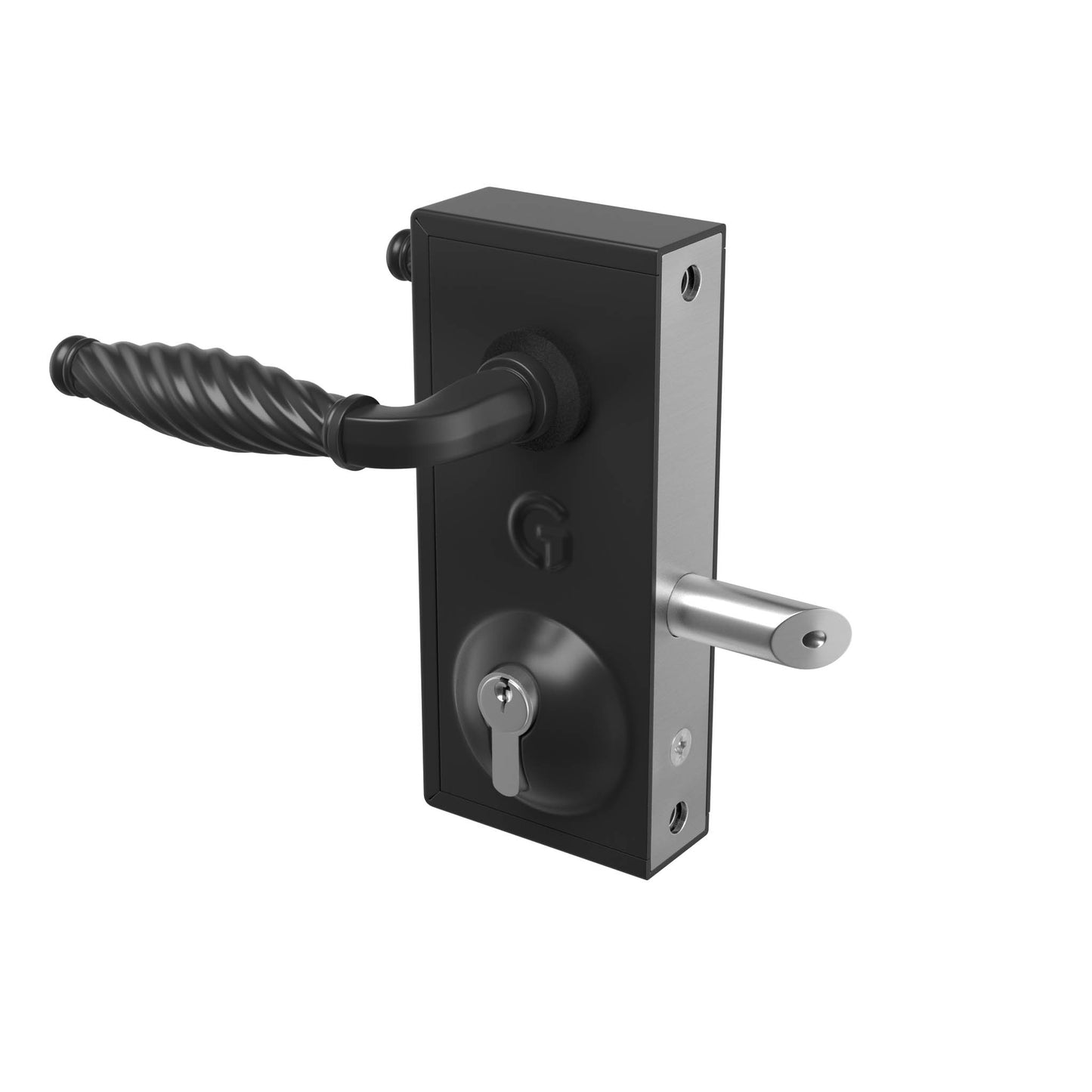

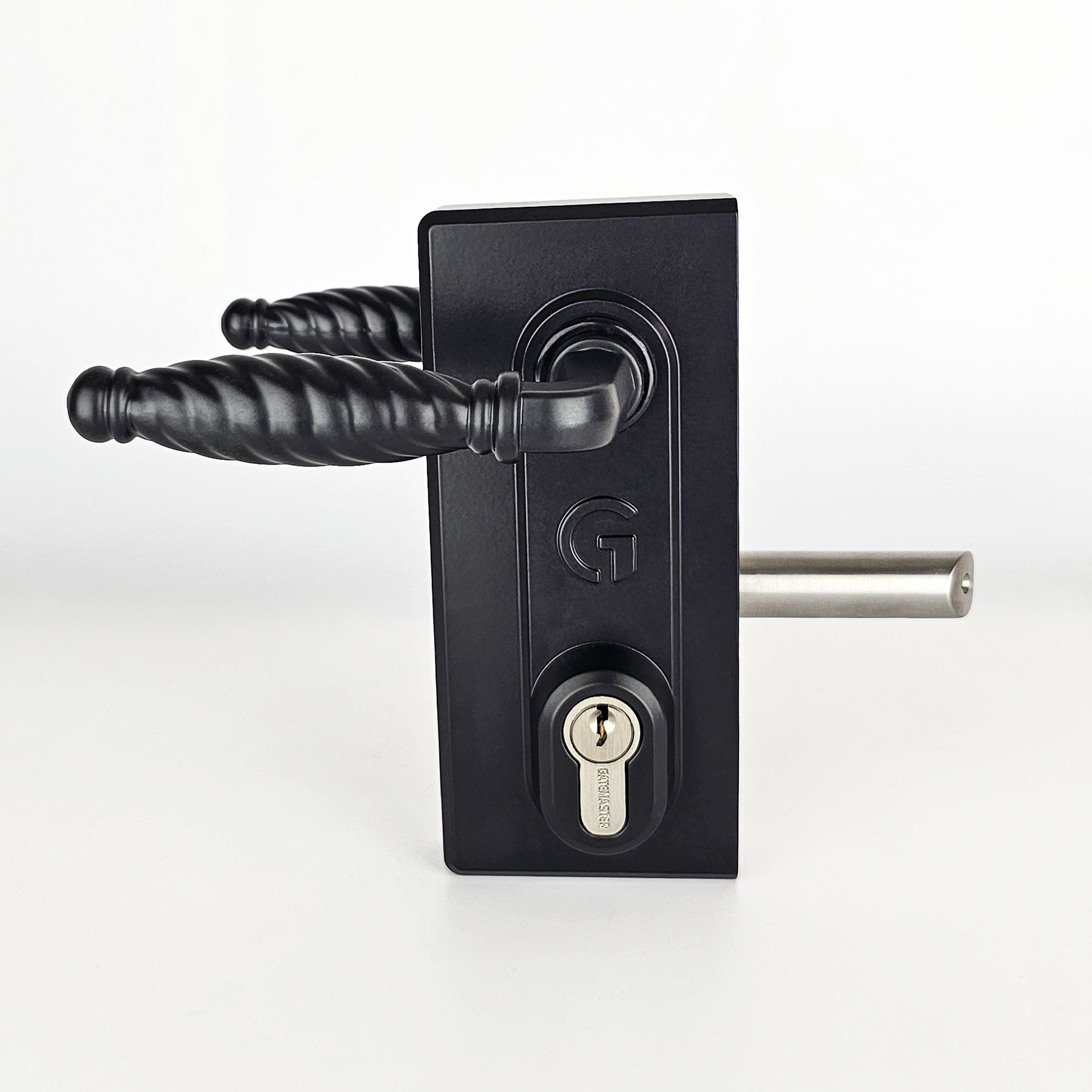

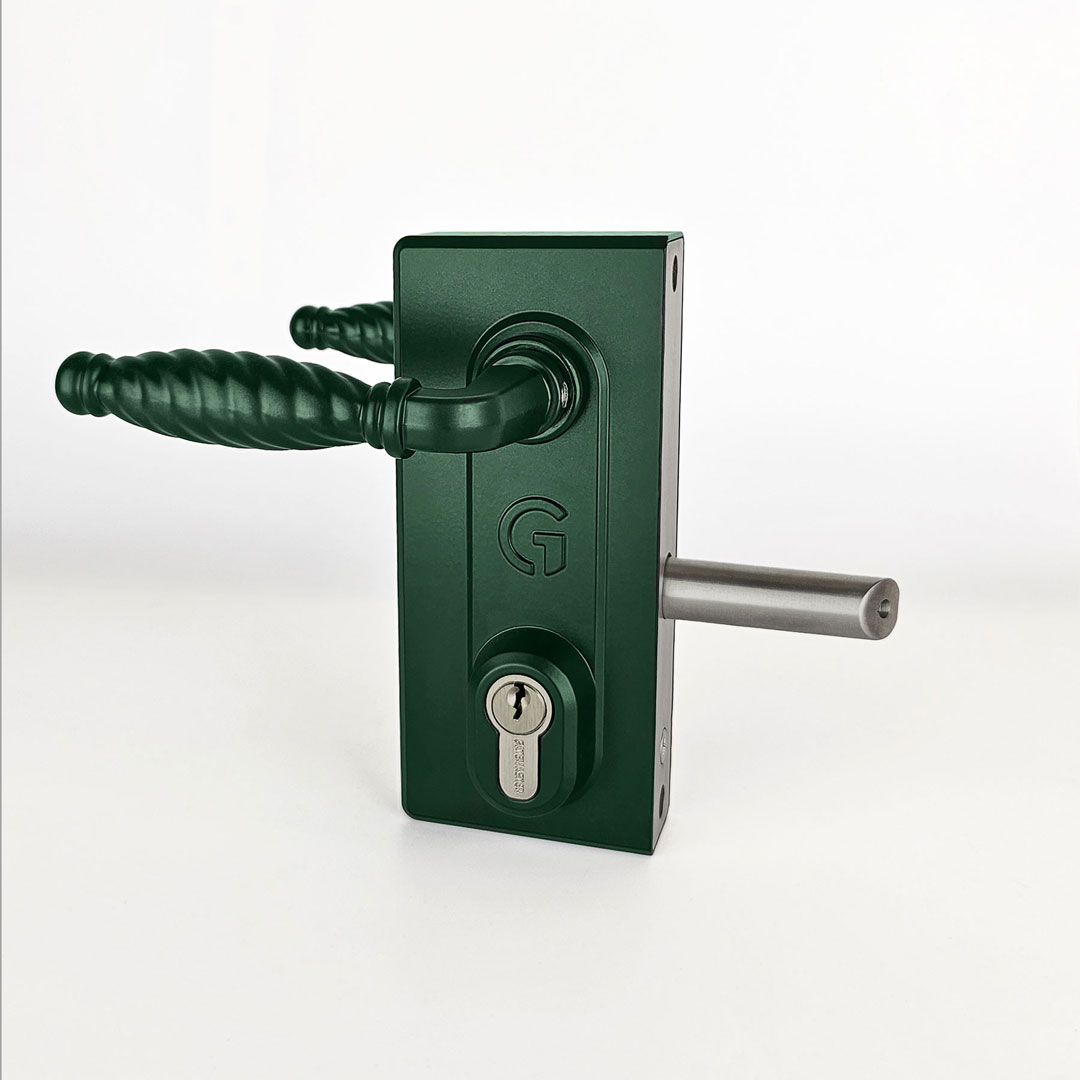

• BLD1030T – For 10-30mm gate frames with traditional handles

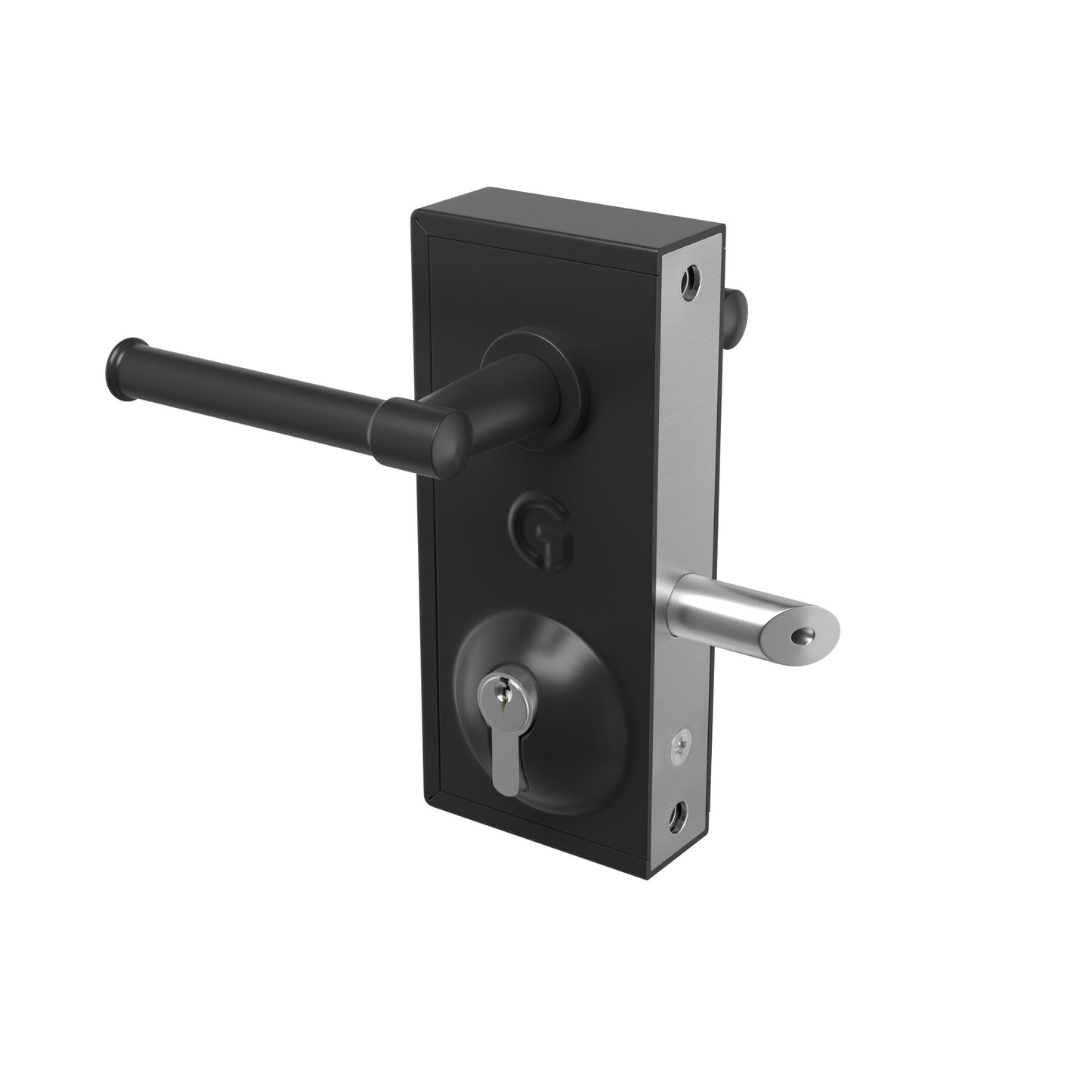

• BLD4060P – For 40-60mm gate frames with plain lever handles
• BLD4060T – For 40-60mm gate frames with traditional handles

Download the spec sheet here.
