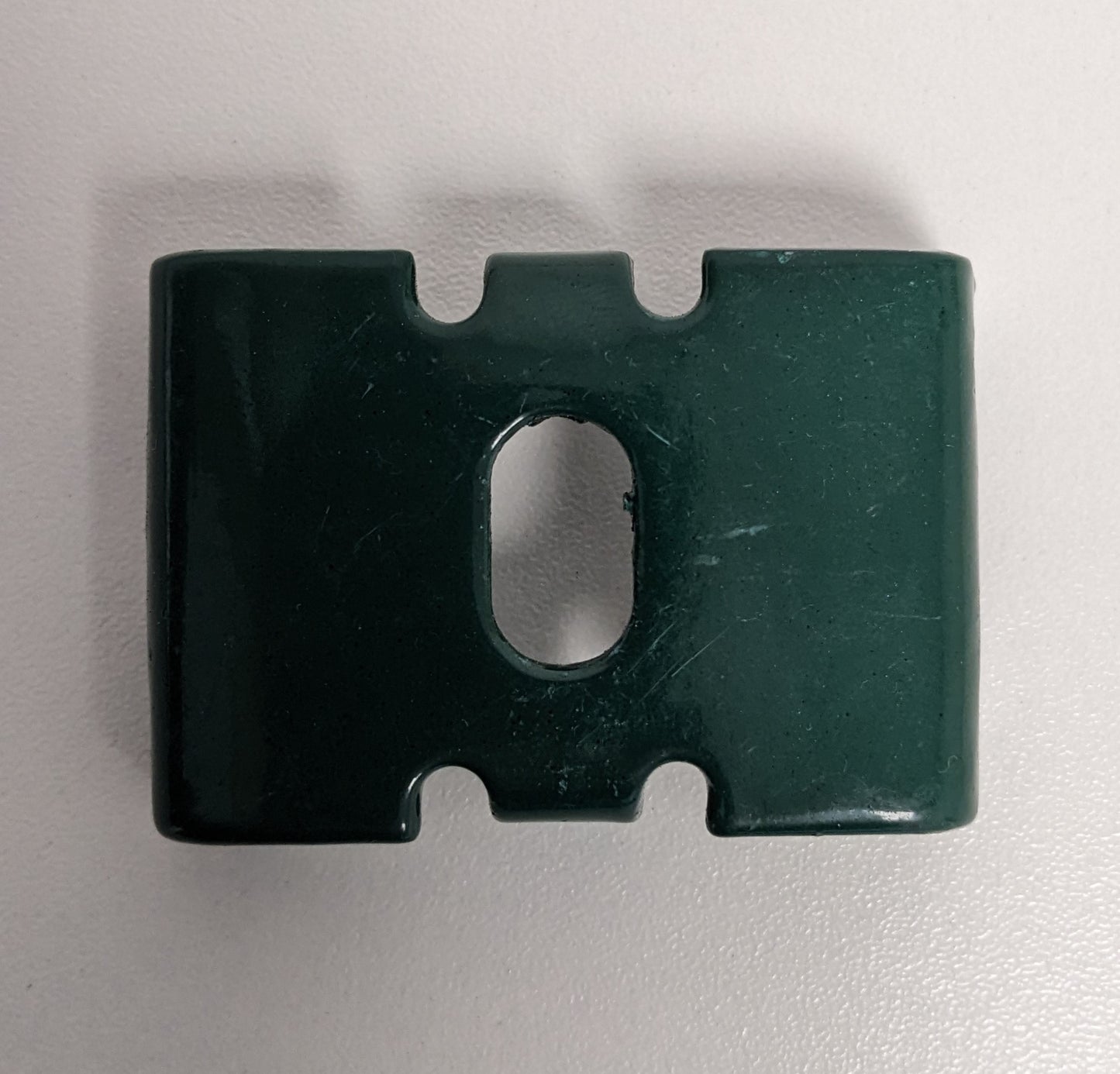

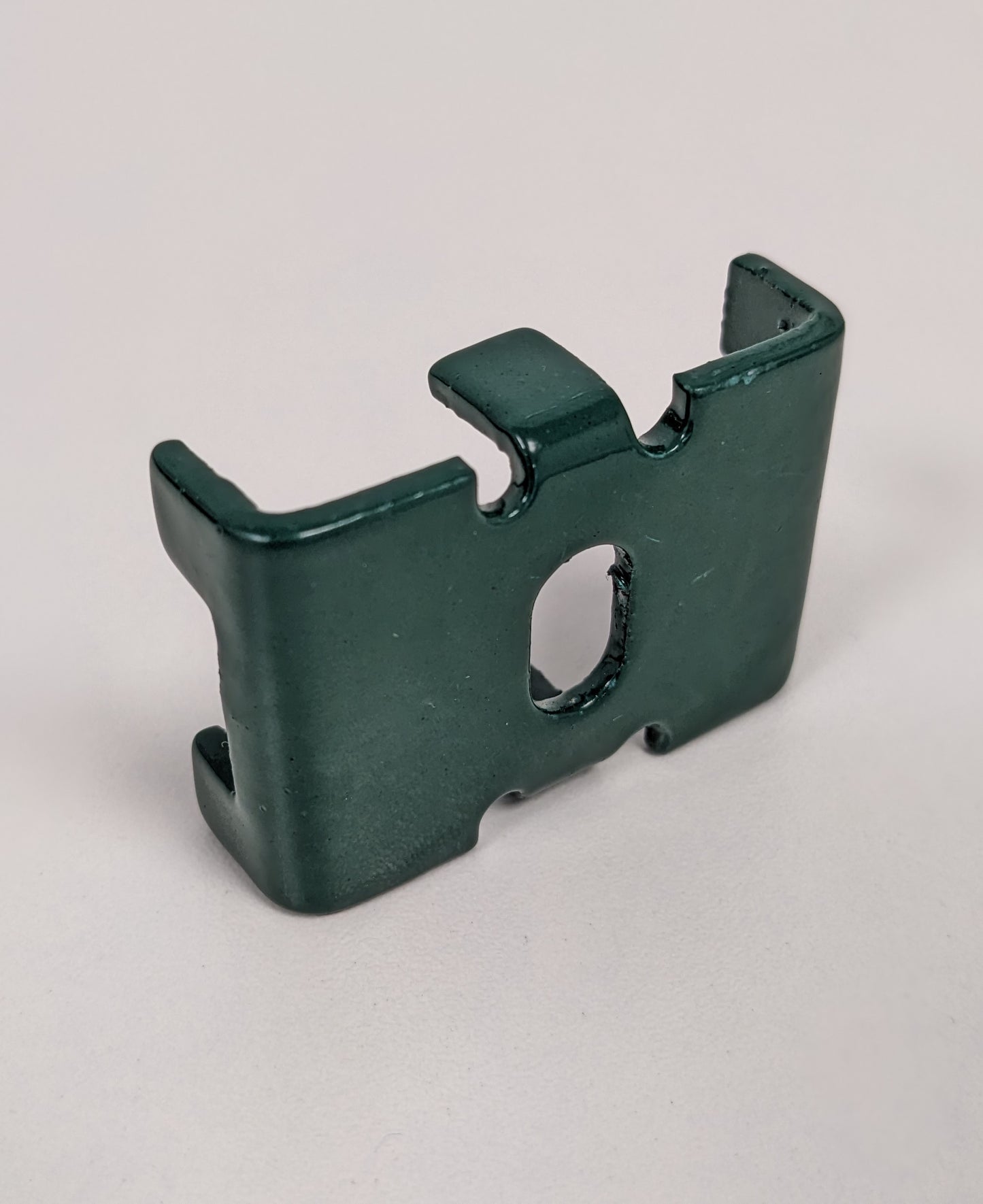

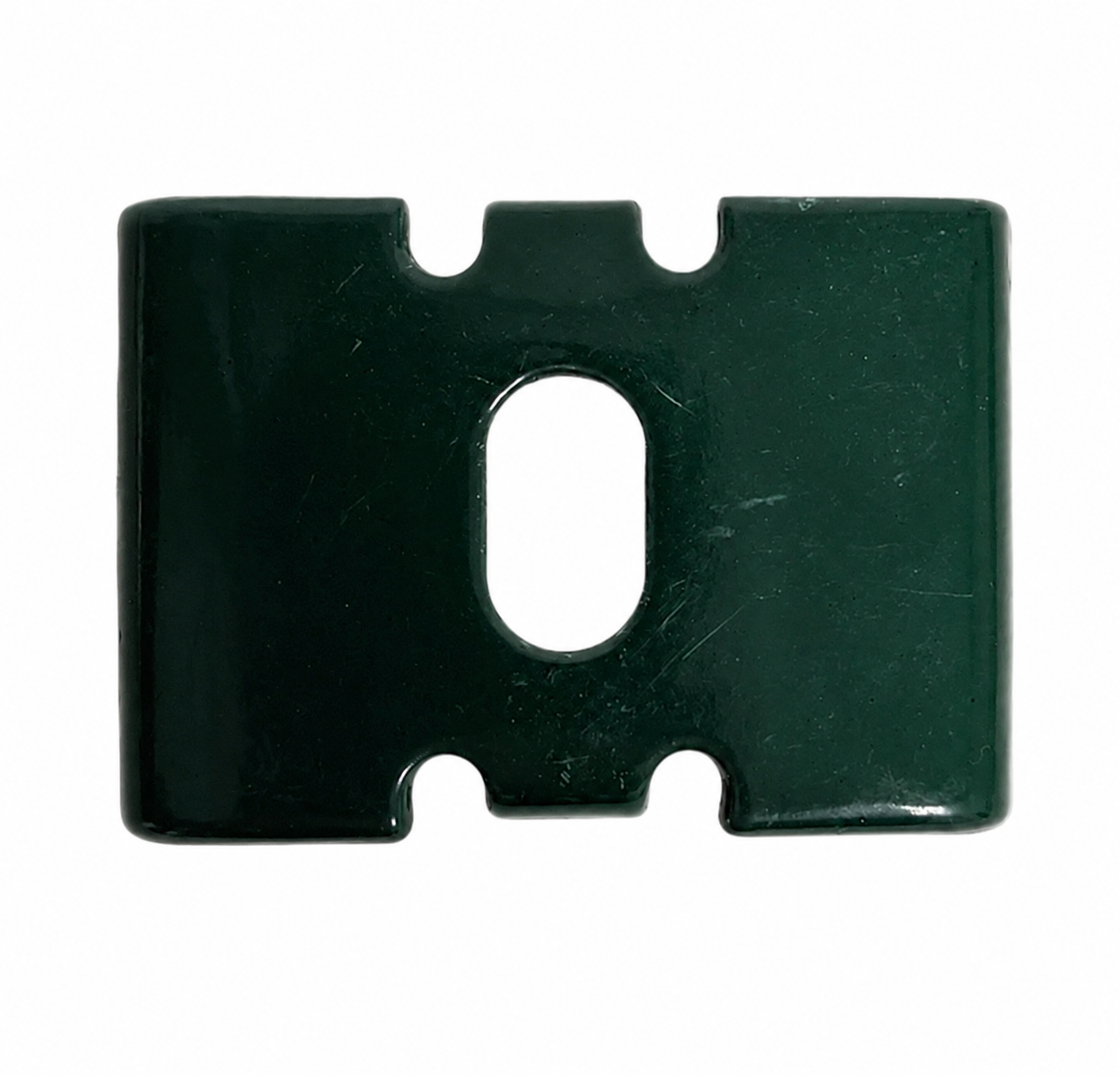

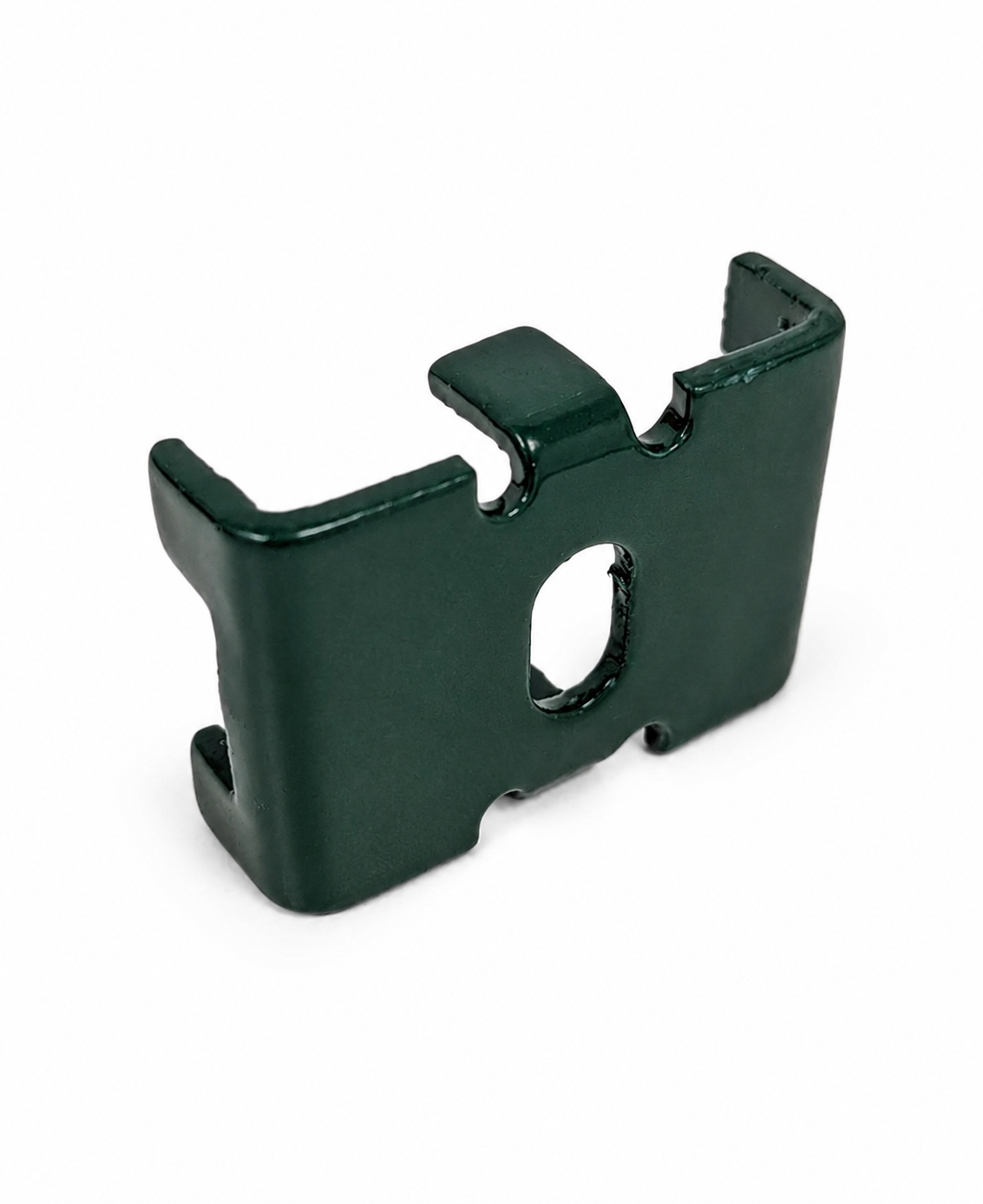

868 Mesh Fencing Clips (100nr)

Fastline Fencing Supplies' 868 mesh fencing clips are clips specifically sized of fixing 868 twinwire mesh fencing panels.

To keep unit prices low, the clips are sold in bags of 100nr clips.

868 Mesh Fencing Clip Dimensions

Overall dimensions of the 868 mesh fencing clips are:

54mmL x 36mmW x 14mmD (overall)

The inside depth of the 868 mesh fencing clip is 12mm.

As the outside of the vertical wire on a 868 mesh fencing panel is 14mm (8mm + 6mm) away from the fencing post once positioned, the 12mm inside clip depth offers good compression against the panel and a secure fit.

868 Mesh Fencing Clip Specification

All our 868 mesh fencing clips are made from pre-galvanised steel and finished with a powder coated finish to prevent corrosion and maximise longevity.

868 Mesh Fencing Clip Instructions

868 mesh fencing clips are simple and easy to use.

Once the fencing panels are held up against the post, the clips can be placed over the top and secured in place using an M8 fixing bolt (bolts sold separately).

Typically fencing posts for 868 mesh fencing will include threaded M8 inserts at various points on the front of the posts (positions and quantites will vary depending on the fencing height).

M8 bolts sold separately.
